A-900 PEM Engine Enhancement System
Highest-output unit in the compact range, designed for 2.7 – 7.0 L gasoline and diesel engines including 4WDs, light trucks and light-duty commercial vehicles. Delivers 900 ml/min of mixed H₂/O₂ on demand in the compact PEM enclosure.
Duties & taxes are included on most destinations. Select your country for the exact arrangement.

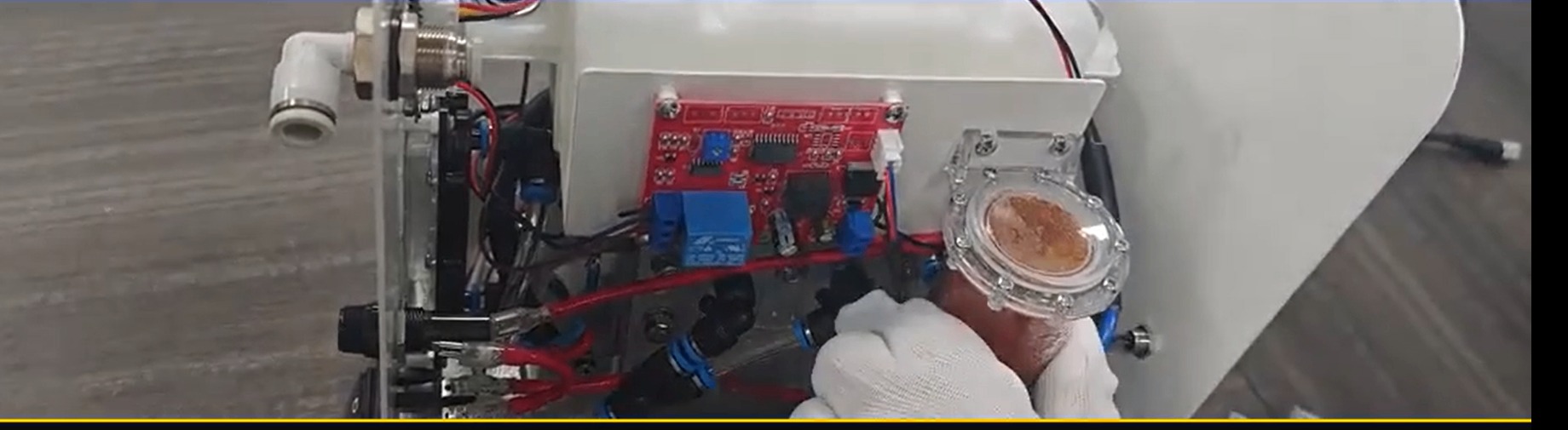

One resin filter is included with every HydrogenMachines™ system. Replacement resin filters are available separately and are typically replaced every 6–9 months depending on water quality and operating conditions. Shop replacement filters →
Free worldwide delivery. Duties & taxes included on most destinations; where pre-payment isn't permitted, the carrier collects them on arrival. 12-month manufacturer warranty. See Shipping & duties by country for the exact arrangement for your destination.
Compact vehicle and light commercial applications
The A-900 is the compact-enclosure unit for large-displacement passenger vehicles, 4WDs and light commercial duty. For heavy commercial transport, continuous-duty service and generator-set installations, specify the H-900 — same 900 ml/min output in an industrial cabinet.
- ▸Large passenger vehicles, 4WDs & vans
- ▸Light commercial duty cycles
- ▸2.7 – 7.0 L gasoline & diesel engines
- ▸Compact engine-bay / behind-cab mounting
Compact vehicle and light commercial duty. Large passenger vehicles, 4WDs and light commercial up to 7.0 L in the compact engine-bay enclosure.
Same 900 ml/min output in an industrial cabinet. Recommended for 20 – 30 kW generator sets and heavy commercial transport — vibration-isolated, behind-cab / pad-mount, onboard ion-exchange polisher, continuous-duty packaging.
Which system is right for me?
Match the system to your vehicle, engine and operating environment. Your current selection is highlighted; tap any other row to compare side-by-side.
- Vehicle
- Passenger cars · light vans · taxis
- Engine
- 1.0 – 1.8 L · gas / diesel / LPG / hybrid
- Use
- Daily-driver fuel-economy & emissions reduction
- Vehicle
- Sedans · SUVs · crew-cab utes · service fleets
- Engine
- 2.0 – 2.5 L · gas / diesel / LPG / hybrid
- Use
- Mixed-duty fleet operation
- Vehicle
- 4WDs · light trucks · light commercial
- Engine
- 2.7 – 7.0 L · gas / diesel
- Use
- Large passenger & light commercial duty
- Vehicle
- Heavy commercial trucks · 20–30 kW gensets
- Engine
- Up to 7.0 L · diesel · natural gas · LPG
- Use
- Continuous-duty industrial · generator sets
- Vehicle
- Prime movers · road trains · large gensets
- Engine
- Up to 16.0 L · diesel · natural gas · LPG
- Use
- Line-haul transport · large stationary engines
Between sizes? Choose the larger system — running below rated capacity extends stack life. Indicative delivered prices shown; freight, duties and taxes included on most destinations. See Shipping & duties by country.
Technical specification
Catalogue specification. Real-world figures depend on engine condition, duty cycle, installation quality and ambient.
| Rated engine displacement | 2.7 – 7.0 L |
|---|---|
| Mixed H₂/O₂ output | 900 ml/min |
| Voltage | 12 – 24 V DC |
| Current / power | 20 A · 170 W |
| Water tank | 1.0 L |
| Water quality | Deionised / purified, TDS ≤ 5 µS/cm |
| Dimensions | 230 × 184 × 280 mm |
| Net weight | 8.1 kg |
| Outlet line | 8 mm OD |
| Fuel compatibility | Gasoline · Diesel · LPG · Hybrid |
Manufacturer test data reports selected fuel-consumption reductions in the 15 – 20% range, reduced carbon accumulation and smoke, and improved combustion stability. Actual results vary materially with engine condition, duty cycle, load profile, fuel quality, installation and operating conditions. Field evaluation is required before commercial projection.
System Dimensions
Compact PEM Engine Enhancement System
Silhouettes drawn to true relative scale against the 280 mm-tall enclosure.
- · PEM enclosure: 280 mm
- · 600 ml water bottle: ~240 mm
- · Carry-on case: ~550 × 400 mm
Compact installation footprint suitable for: sedan boot/trunk · SUV cargo area · utility vehicle storage compartment · generator-set enclosure.
Overall dimensions (L × W × H): 230 × 184 × 280 mm. The enclosure occupies less space than a typical mid-tower desktop PC and is designed for compact vehicle and generator installations.
Frequently purchased together
One resin filter is included with every HydrogenMachines™ system. Replacement resin filters are available separately and are typically replaced every 6–9 months depending on water quality and operating conditions.
These are combustion-enhancement devices. No emissions-compliance or fuel-saving guarantee is expressed or implied. Professional installation and controlled field evaluation are recommended.
